W203 jack pad tool w/floor jack

Jack Pad Tools for Mercedes-Benz

Most Mercedes-Benz vehicles introduced after the 2000 model year incorporate a combination jack point which can be used with either the vehicle jack or the dealer service department lift. The Reverse Logic jack pad tools for Mercedes-Benz with spring loaded pins leverage a small notch in either end of the jack point pocket. The pins in the ends of the jack pad tool block are positioned to snap into these notches and temporarily suspend the tool while a floor jack can be positioned below the jack point. With the jack pad tool in place the car can be safely lifted with a floor jack without damaging the side skirts or undercarriage. Our line of aluminum tools for Mercedes-Benz chassis require a floor jack with a saddle that is a minimum of 3" in diameter to accommodated the 63mm diameter base.

Read More

Multi-Vehicle Jack Pad Tool (tall)

SKU MV52-30-28
$27.45
Out of stock
1
Product Details

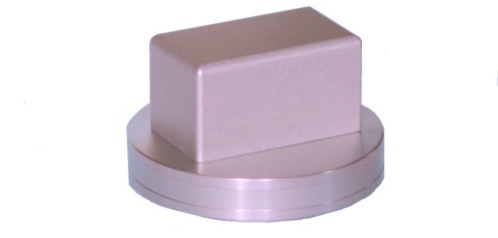

The aluminum block on the MV52-30-28 jack pad tool measures 52mm long by 30mm wide by 28mm high. These dimensions allow this tool to be used with cars that have an integrated vehicle jack pocket in the factory jack points. This includes most modern BMWs, MINIs, non-AMG Mercedes, and the Nissan GT-R. For floor jacks with removable saddles, the optional 30mm or 25mm diameter pin allows use of the tool without a floor jack saddle. A low profile floor jack is normally required to use this tool. Unlike our other chassis specific jack pad tools below, this mutli-vehicle tool does not hang from the factory jack points. The “universal” dimensions of the block preclude this feature from being incorporated into the MV52-30-28 jack pad tool model.


This tool must be used with a floor jack which has at least a 3" diameter saddle.
