W203 jack pad tool w/floor jack

Jack Pad Tools for Mercedes-Benz

Most Mercedes-Benz vehicles introduced after the 2000 model year incorporate a combination jack point which can be used with either the vehicle jack or the dealer service department lift. The Reverse Logic jack pad tools for Mercedes-Benz with spring loaded pins leverage a small notch in either end of the jack point pocket. The pins in the ends of the jack pad tool block are positioned to snap into these notches and temporarily suspend the tool while a floor jack can be positioned below the jack point. With the jack pad tool in place the car can be safely lifted with a floor jack without damaging the side skirts or undercarriage. Our line of aluminum tools for Mercedes-Benz chassis require a floor jack with a saddle that is a minimum of 3" in diameter to accommodated the 63mm diameter base.

Read More

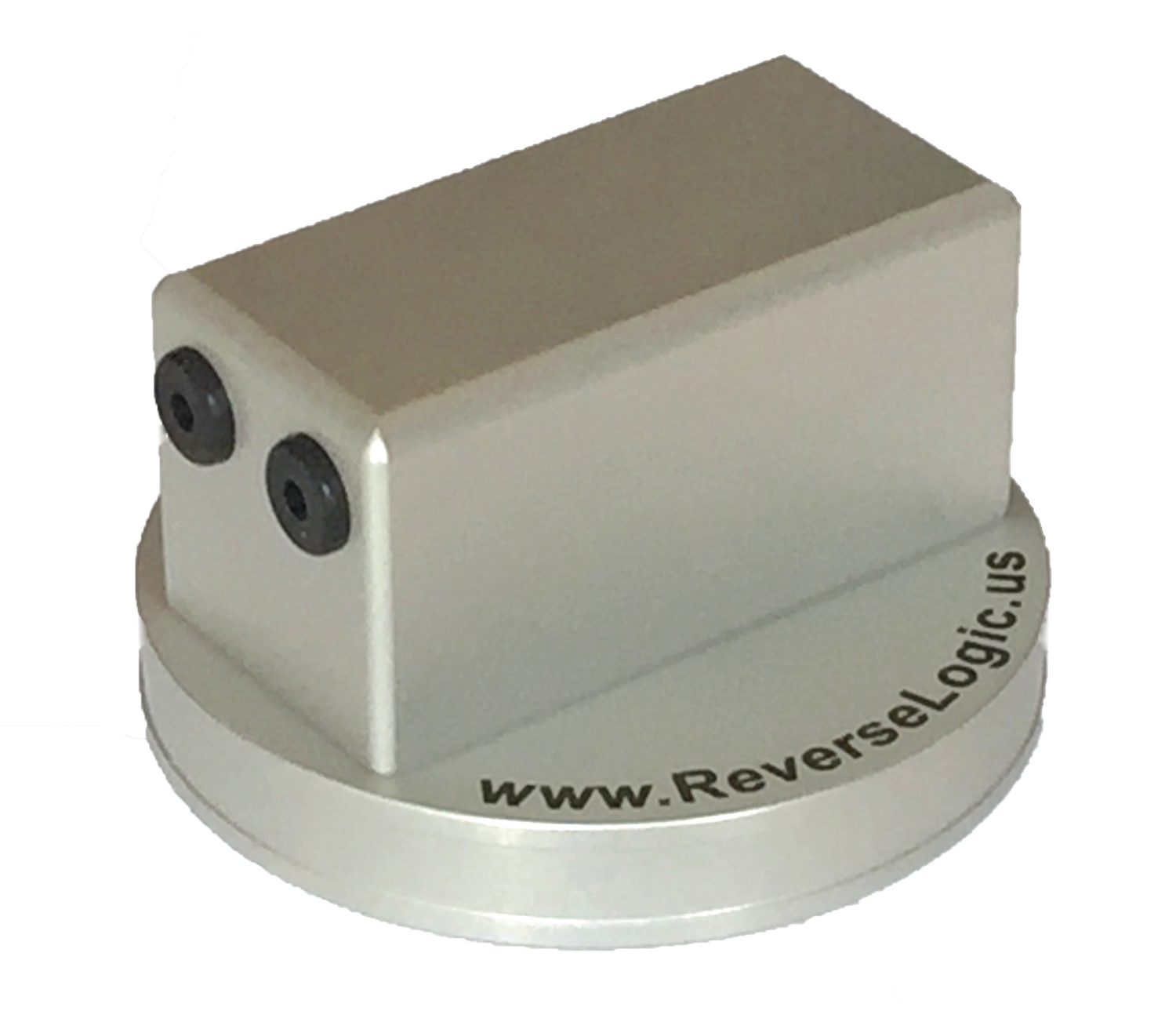

Jack Pad Tool for W205 X204 W166 X166 W222 X253

SKU W205
$35.45
In stock
1
Product Details

The W205JPT model fits Mercedes X204 GLK, W166 ML, X166 GL, W205 C-Class and W222 S-Class chassis. The base for the W205 tool is 68mm in diameter by 11mm thick. The W205JPT uses Silicone plugs to provide a friction fit in the jack point pockets. When the tools are suspended from the jack points it is very easy to align a floor jack with the jack point. The Silicone plugs are pressed into holes in the block and expanded with a small plastic screw.


This tool must be used with a floor jack which has at least a 3" diameter saddle.
