Pivot-Top™ Posts for ESCO Jack Stands

The factory ESCO  jack stands have a large 4.25" diameter rubber padded flat top that won't damage the jack points on your high end luxury car. In addition to the rubber padded posts, Reverse Logic offers a custom Pivot-Top™ post with a pivoting block which fits the jack points on BMW, Mercedes-Benz, and Nissan GT-R chassis.

The posts can be used with ESCO 10498 or 10499 jack stands. Since the jack stands are positioned inside the vehicle jack pocket, they will be in the ideal location for supporting the weight of the car and won’t damage the jack points.

ALWAYS USE JACK STANDS IN PAIRS. DO NOT SUPPORT YOUR CAR WITH ONE, THREE, OR FOUR JACK STANDS. USE WHEEL CHOCKS IN FRONT AND BEHIND THE WHEELS ON THE GROUND.

Reverse Logic also offers blocks for Torin T43004 aluminum jack stands which will fit into the plastic jack points on late model BMW, MINI, Mercedes-Benz, and Nissan GT-R chassis. It is necessary to drill a 10mm hole in the Torin jack stand saddle to use the blocks.

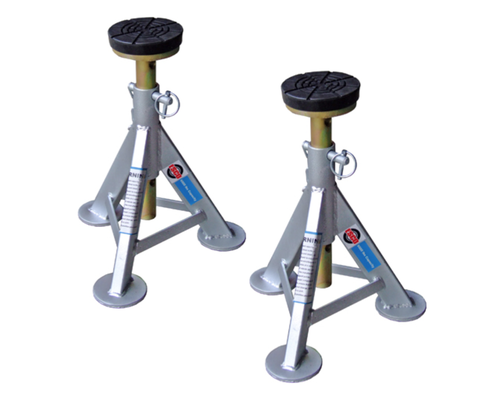

ESCO 10498 Jack Stands - 13" to 21"

SKU E-10498
$131.90
In stock
1
Product Details
  • Removable Rubber Flat Top
  • 9 Adjustable Positions (5 w/Pivot-Top™ post)
  • Circular Base Pads for Maximum Stability
  • Sold in pairs


ESCO 10498 jack stands are highly regarded and known for their sturdy design and flat top rubber padded saddle. The 10498 stands have a minimum height of about 13" and a maximum height of about 21". The tripod legs are about 12" apart on the standard 10498 model. There are 5 holes in the solid steel post which are spaced about 50mm apart.


The ESCO 10498 stands are also available with a custom stainless steel Pivot-Top™ post with a pivoting block or a pivoting 63mm diameter pad. The 52mm by 30mm x 28mm block fits the jack points on BMW/MINI, Nissan GT-R, and Mercedes-Benz chassis jack points. The range of the 10498 stand with the custom post is 13" to 17". The Pivot-Top™ posts are also available separately to customers who already own a set of ESCO jack stands.
