Corvette Jack Pads

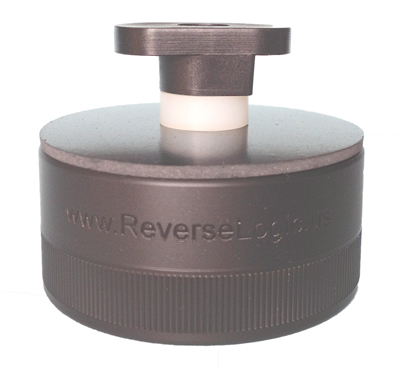

Corvette jack pad tool
Corvette jack pad components
Corvette pad with lift arm

Jack pad assures adequate car-to-lift-arm clearance

The Reverse Logic Corvette jack pad tool increases the clearance between the side skirts and the rim of a floor jack saddle or the arms on a four-arm lift. The tool can be used in two modes. When the Nylon spacer is installed between the puck and the T-nut, the jack pad can be used in the conventional manner where it simply hangs from the chassis. In this mode all five of the tool components are used.

Read More

Optional 15mm Extension

A 15mm thick extension can be used with the standard Jack Pad Tool to provide additional floor jack or lift arm clearance for cars with very low side skirts. The extension is supplied with a 55mm long M8x1.25 bolt which replaces the 40mm long bolt included with the standard tool.

Jack Pad Tool for C5/C6/C7/C8 Corvette

SKU C28-63JPT
$20.00
In stock
1
Product Details

The “diamond” shaped shaft on the T-nut distinguishes the Reverse Logic C5/C6/C7/C8 Corvette jack pad tool from competing products. The built-in stops on the shaft of the T-nut restrict the tool from being turned more than 90 degrees once the tool is inserted into the oval-shaped hole in the chassis. The tool can be used in two modes. When the Nylon spacer is installed between the puck and the T-nut, the jack pad can be used in the conventional manner where it simply hangs from the chassis. Although this tool is not intended to be permanently installed, it can be temporarily secured in place when performing maintenance for an extended period or taking a quick trip to a service garage. In this mode, the spacer is removed and the T-nut is re-installed until there is about 1/8" to 3/16" space between the T-nut and the washer. The tool is then inserted into the chassis jack point and the puck is turned clockwise a couple of turns until the tool is snugged up against the chassis. The washer prevents the tool from scraping against the chassis while turning the puck to secure it in place.

For some destinations in the USA the tools will be shipped unassembled in order to minimize shipping costs. This tool must be used with a floor jack which has at least a 2.5" diameter saddle.
