Audi jack pad tool with R8

Jack Pad Tools for Audi/Porsche/VW

The Reverse Logic jack pad tool for Audi chassis is compatible with the R8, TT Mk2, and other RS, and S chassis which use a jack point with a half circle shaped pocket. Typical chassis jack points for these Audi models are shown below. The jack point in the R8 chassis is recessed as shown in the photo. This tool is not intended to be used with Audi chassis with pinch weld jack points.

An anodized aluminum bar-shaped "block" is bolted to the base with an M10x1.5 bolt. The shape of the block allows the car to be lifted without binding against the side of the block. No modifications to the jack pad receptacles on your car are required to use this jack pad tool.

Read More

Jack Pad Tool for Audi

SKU A-JPT
$35.45
In stock
1
Product Details

This jack pad adapter tool from Reverse Logic Limited is designed to work with the Audi R8, Audi TT Mk2, and other RS, and S chassis which use a jack point with a half circle shaped pocket.

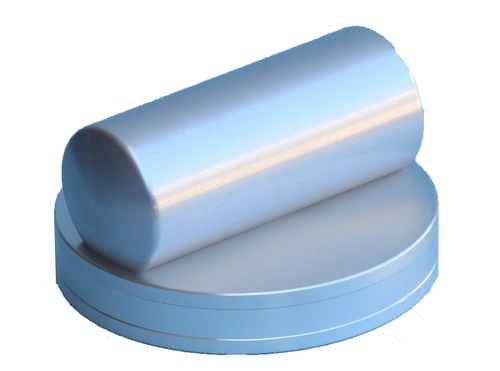

The base is a 63 mm diameter by 13 mm thick clear anodized aluminum disk. An anodized aluminum "block" is bolted to the base with an M10x1.5 bolt. No modifications to the jack pad receptacles on your car are required to use this jack pad tool.


This jack pad tool is intended to be used with a floor jack with a flat bottomed saddle that is at least 3-inches in diameter and no more than 3/8-inch deep. An optional 30mm or 25mm pin is available for use with floor jacks with a removable saddle.

Save this product for later
