2-Stage Incline Service Ramps

RR-72-2 service ramp drawing

Low Ground Clearance? No Problem

For some cars with very low ground clearance, the 10.8˚constant incline of the RR-56 or RR-XT (67”) Race Ramps is too steep. For these cases Race Ramps offers optional XTender Ramps with a 6.8˚ incline. An alternative solution to XTenders is 2-Stage Incline ramps. The designation "2-Stage" indicates that the ramp features two distinct inclines over the length of the ramp. Anyone who has been contemplating the purchase of the standard ramps with the optional XTenders should consider the 2-Stage Incline Ramp solution which is less expensive and more convenient to handle and store.

Read More

Combo Service/Trailer Ramps

Reverse Logic offers a third 2-Stage Incline Ramp model, the RLL-80-2. This ramp features an invertible incline section, which can be used as a 6” high trailer ramp. The 9” high platform section of the RLL-80-2 ramp is cradle shaped to help keep the tires in position when the opposite end of the car is raised with a floor jack. The RLL-80-2 ramp is not available with the Heavy Duty option.

72" 2-Stage Incline Ramps

SKU RR-72-2
$323.00
In stock
1
Product Details

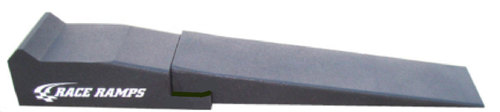

RR-72-2 Two-Stage Incline Race Ramps are recommended for very low ground clearance cars with tires up to 10" wide. As a car climbs the initial section of the ramp, with a 6.8˚ incline, the approach angle of the car effectively increases such that it can clear the second steeper part of the ramp. The 72" ramps are 12" wide with an 8" high platform. The load capacity of the ramps is 3000 pounds per pair. A Heavy Duty option is available which increases the capacity to 5000 pounds per pair.


* For increased safety, use Wheel Chocks with all Race Ramps products. *

Price does not include shipping to International Destinations. Please request a quote by e-mail.
